Shacman Skip Loader Garbage Truck 6 Wheelers 10m³ Swing Arm Garbage Truck
Product Overview
Chassis Brand: Shacman (Shaanxi Automobile Group) is a prominent Chinese heavy-duty truck manufacturer. Popular Shacman chassis series used for special vehicles include the F3000 and H3000.
Wheel Drive: 4*2 (6-wheelers) is the standard configuration for this capacity. A 4x2 truck has four wheels in total and two of them are driven (the rear axle).
Capacity: The "10 m³" refers to the volume of the detachable garbage container (skip bin) it is designed to handle. Skip bins for this type of truck can range from 3m³ to 15m³ or more, with 10m³ being a common mid-range size.
Engine & Power: Typically equipped with powerful diesel engines from manufacturers like Weichai or Cummins, with horsepower often in the range of 200 to 300 hp depending on the specific model and emission standard (e.g., Euro II, III, IV, or V).
Transmission: Manual transmission (e.g., FAST brand) with multiple forward and reverse gears.
Skip Loader (Swing Arm) Mechanism
The main purpose of this truck lies in its superstructure:
- Function: The hydraulic swing arm mechanism uses a pair of heavy-duty, reinforced arms (booms) and chains to hook onto a skip container. It then lifts the full container onto the truck chassis for transport or gently lowers an empty one for placement.
- "One Truck, Many Bins": The core advantage is its flexibility—one skip loader truck can service multiple stationary skip bins placed at different collection points, improving efficiency and reducing the need for a separate fleet of collection vehicles.
- Hydraulic System: Operated by the vehicle's engine via a Power Take-Off (PTO). The lifting and lowering operation is controlled by hydraulic cylinders, usually through a manual multi-way valve block located on the side of the truck.
- Working Cycle: The hoisting time for the arm to load a container is typically around 30 to 50 seconds.
- Unloading: The truck has a self-unloading function; the container is simply lowered or tilted to dump the waste at the disposal site.
Applications
The Shacman 10 m³ Skip Loader is highly versatile and is primarily used for:
- Municipal Waste Collection: Collecting waste from large skip bins placed in residential or market areas.
- Construction Sites: Hauling construction debris, rubble, and bulk materials.
- Industrial Waste: Managing heavy or bulk industrial waste and scrap metal.
- Short-Distance Transport: Ideal for waste transfer between collection points and a larger processing or transfer station.
Skip loader vehicle (also called skip loader truck, skip loader vehicle, skip loader garbage truck, swing arm garbage truck, telescopic arm skip loader, multi skip loader truck ) is a garbage truck with detachable body container. Which could enable one truck with several garbage containers for recycle use.
It could be equipped with a cover to prevent dropping any rubbish.
Shacman Skip Loader Garbage Truck 6 Wheelers 10m³ Swing Arm Garbage Truck Technical Sheet
| Feature | Specification / Detail |
| Garbage Bin Capacity | 10m³ (Cubic Meters) |
| Nominal Loading Capacity | Approximately 8-10 Tons (varies by model and local regulations) |
| Truck Type | Skip Loader / Swing Arm Garbage Truck |
| Drive Type | 4x2 (6-wheelers) |
| Chassis Model (Common) | SHACMAN L3000 or equivalent |
| Overall Dimensions (L x W x H) | Approx. 8,200mm*2,550mm*3,400mm |
| Gross Vehicle Weight (GVW) | Approx. 16,000kg |
| Curb Weight | Approx. 10,500kg |
| Wheelbase | Approx. 4,500mm |
| Engine Make / Model | WEICHAI (e.g., WP6.210E32) or CUMMINS |
| Engine Type | Diesel, Water-cooled, Turbo-charged & Inter-cooled |
| Engine Horsepower | Typically 210 HP to 220 HP |
| Emission Standard | Euro II / Euro V (Varies based on market) |
| Transmission | FAST Manual Transmission |
| Gears | 8 Forward + 1 Reverse (Common) |
| Front Axle Capacity | 4.8Tons (MAN technology) |
| Rear Axle Capacity | 10Tons (MAN technology, Single Reduction) |
| Tire Specification | 10.00R20 or 12.00R20 (6+1 spare tire) |
| Cab Type | SHACMAN Day Cab (or similar, typically 3 passengers) |
| Swing Arm System | Manual Hydraulic Control (often with remote control option) |
| Lifting Arms | 2 pieces, strong alloy steel material |
| Stabilizers | 2 pieces, Hydraulic type, high-strength |
| Hoisting/Loading Time | Approx. 30 seconds |
| Unloading/Discharge Time | Approx. 50 seconds |
| Skip Bin Shape | Square, boat-shaped, or customized |
| Operation System | PTO (Power Take-Off) driven Hydraulic System |
| Key Hydraulic Components | Hydraulic Pump, Multi-way Reversing Valve, Balance Valve, Hydraulic Lock, Hydraulic Cylinders |
| Chassis Description |
| Cab | One and half row non-longhead cab can turn over |
| Color | Optional |
| Allowable person in cab | 2/3 |
| Wheel base (mm) | 4500 |
| Number of axles | 2 |
| Front axle | 5000 |
| Rear axle | 10000 |
| Traction system | 4*2 |
| Tire specification | 10.00R20 |
| Tire quantity | 6+1 |
| Engine Description |
| Engine manufacture | WEICHAI Engines |
| Engine model | YWD615 69 |
| Emission standard | Euro 2 |
| Exhaust/output | 9726ml/247kw |
| Horse power | 336hp |
| Up-parts Description |
| Material of garbage container | Q235 carbon steel |
| Operation control system | Electrically hydraulic control |
| Swing arm operating system | Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc. |
| Especially suitable for | Short distance transportation, sanitation department cleaning, transportation, etc. |
| Swing arm maximum pivot angle | 145° |
| Hoisting time | 30s |
| Unloading time | 50s |
We can make any size as your drawing or We can drawing as your request :

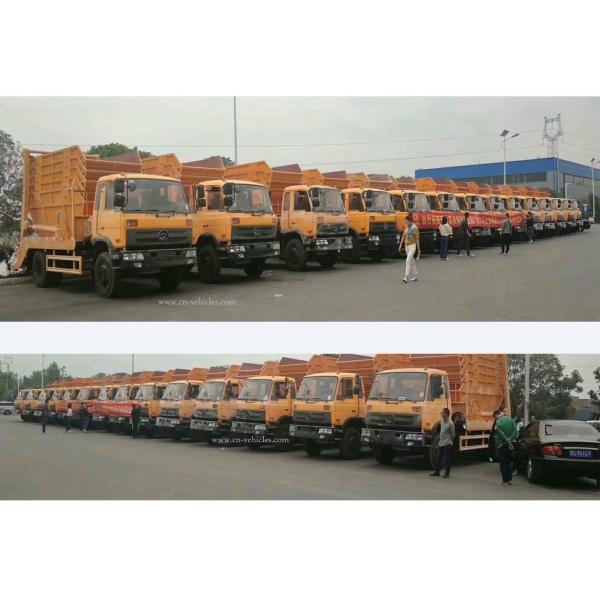

Big Order :
